gold purity analyzer
685000.0 INR/Number
Product Details:
- Number of Specimens Single Sample at a time
- Specimen Size Small jewelry pieces, coins, bars Millimeter (mm)
- Accuracy 0.01% to 0.1% C
- Gas Pressure Not Required (XRF Based) Bar
- Port Size Standard USB / RS232 Port
- Material Metal body with powder coating
- Classification XRF Analyzer / Karat Meter
- Click to View more
X
gold purity analyzer Price And Quantity
- 685000.0 INR/Number
- 1 Number
gold purity analyzer Product Specifications
- Gold Purity Testing Machine
- Automatic
- 10 C to 35 C Celsius (oC)
- 5 Kilograms (kg)
- Table Top
- Non-destructive purity testing
- Jewelry shops, hallmarking centers, gold traders, laboratories
- Non-destructive testing High accuracy and fast results Multi-metal analysis User-friendly interface Minimal maintenance Built-in calibration system
- Continuous testing Kg
- 100 300 Watt (w)
- Automatic
- USB / Ethernet
- 220V AC, 50 Hz
- 30 60 seconds per test
- 50 Hertz (HZ)
- Gold (Au), Silver (Ag), Platinum (Pt), and other precious metals
- Benchtop Analyzer
- 220V Volt (V)
- Digital / Microprocessor Controlled
- 400 300 350 Millimeter (mm)
- 0% to 99.99% purity Celsius (oC)
- 80% RH (Non-condensing)
- Touchscreen LCD
- 0.01%
- 30 60 Seconds
- 220v Volt (v)
- 10 Kilograms (kg)
- White / Grey
- XRF Analyzer / Karat Meter
- Metal body with powder coating
- Not Required (XRF Based) Bar
- Standard USB / RS232 Port
- Single Sample at a time
- Small jewelry pieces, coins, bars Millimeter (mm)
- 0.01% to 0.1% C
gold purity analyzer Trade Information
- Cash Against Delivery (CAD), Cheque, Telegraphic Transfer (T/T)
- 20 Number Per Month
- 10 Week
- wooden crate
- CE
Product Description

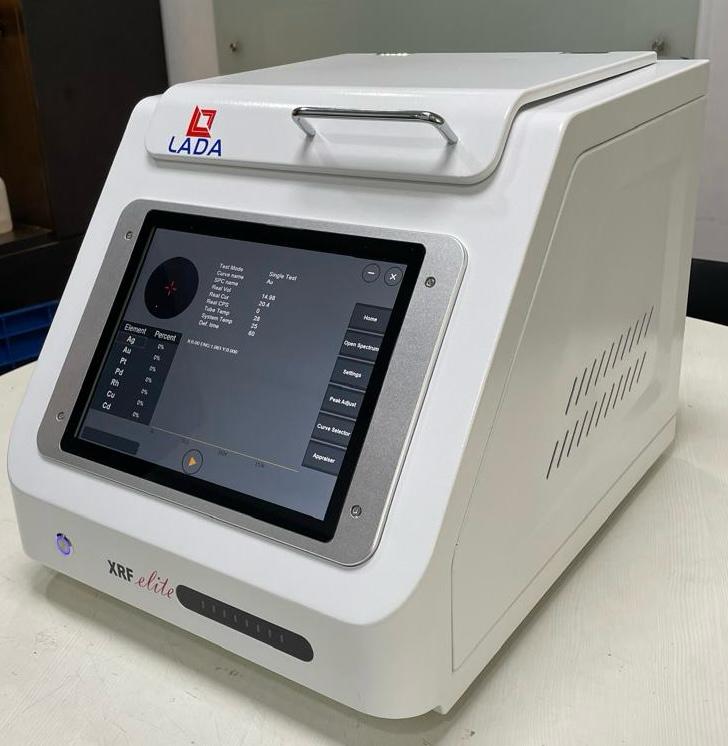

LADA XRF-Elite-pro
Multi-Element Analyzer (Gold and Other Precious Metal Purity Testing Machine)
Features
- Data Accuracy, Tolerance: 0.3 to 0.5%
- Fast warm-up time
- Calibration & service support through online
- Weighing Scale Compatible software
- Rate / value and weight Onscreen display
- Pawan Broker / Upriser / Bank loan processing software
- Integrated with Latest Windows 10/11 OS, software upgradable version
- Industrial Grade Inbuilt PC with heat-resistant Touch Screen panel
- X-ray Protected Metal Body, Anti-Radiation, powder-coated
Specifications
| Specification | Details |
|---|---|
| Analysis Range | 1ppm to 99.99% |
| Accuracy | 0.3% in homogeneously melted samples |
| Sample Form | Solid |
| Testing Area | 2mm |
| Tube Voltage | 5kv-50Kv (USA) |
| High Voltage Power | 0-50kv SPELLMAM (USA) |
| X-Ray Tube Current | 0 microA 1000 microA |
| Camera | HD Camera |
| Detection Type | Micro Processor based Proportional Counter tube |
| Filters | Selectable Customized Switches |
| Resolution | 9005ev |
| Multichannel Analyzer | KEY - DMCP |
| Sample Chamber Size | 380x380x60(mm) |
| Test Time | 10-60 sec |
| Measuring Elements | Au, Ag, Pt, Pd, Ni, Cu, Zn, Cd, In, Rh |
| Analysis Software | KEY- FP Qualitative Quantitative Analysis software |
Physical Dimensions
| Dimension | Details |
|---|---|
| Size | 490x400x400 mm |
| Weight | 30 kg |
Instruments Environmental Requirements
| Requirement | Details |
|---|---|
| Ambient Temperature | 5C 40C |
| Relative Humidity | 15% 90% |
| Power Requirements | AC 220V 5V, 50/60Hz |
| Testing Area | No High Power Electromagnetic and Vibration |
